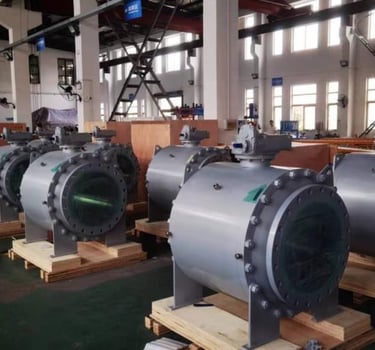

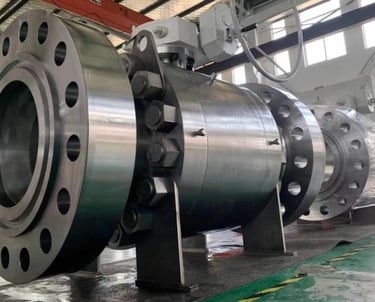

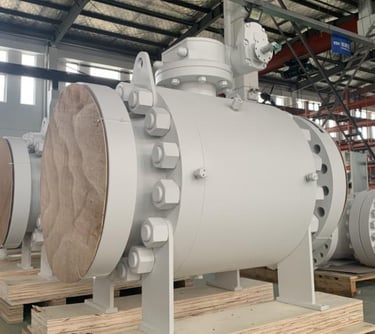

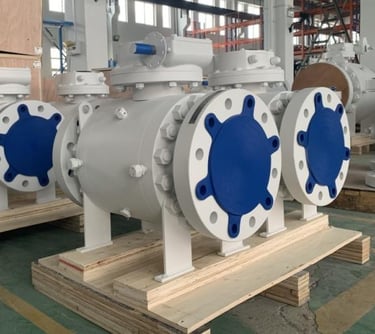

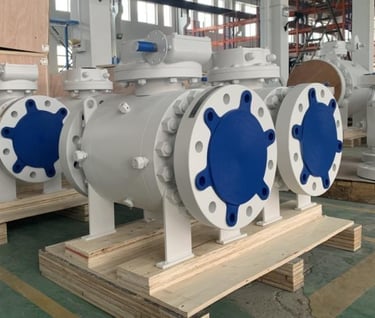

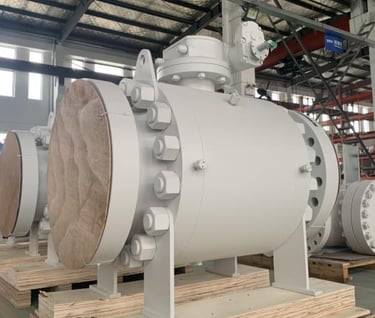

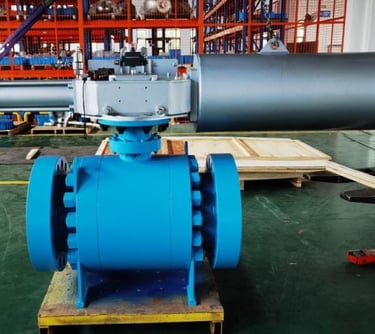

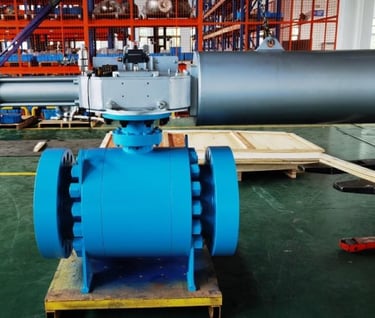

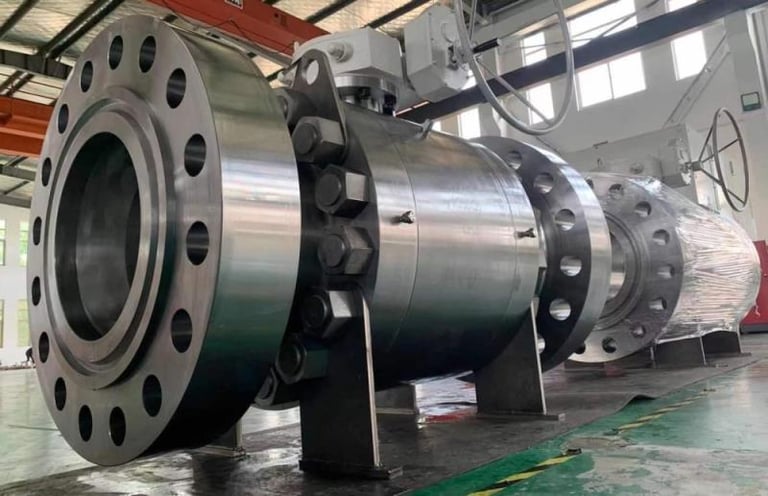

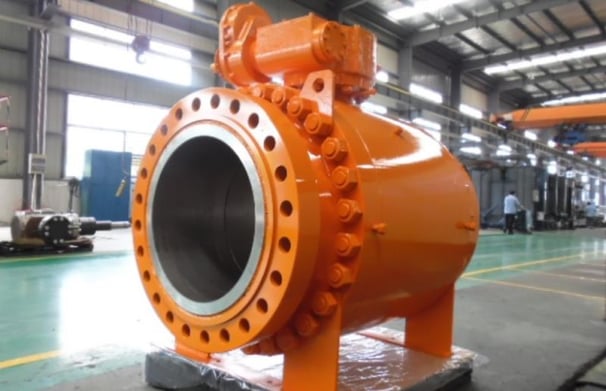

TM3 Trunnion Side Entry Ball Valve

Size Range: 2”-60”

Pressure Class： ANSI 150-4500
API 2000-15000

TM3 trunnion-mounted ball valves are designed to meet API 6D standards and feature a 2-piece or 3-piece split-body side-entry design. These valves offer a wide selection of sealing materials, including PTFE, PEEK, Devlon, and Nylon, making them suitable for a temperature range of -46°C to 200°C. The TM3 series is available with optional designs, such as Double Block and Bleed or Double Piston configurations. Additionally, all TM3 ball valves are equipped with a sealant injection system for both the stem and seats, enabling external intervention to prevent stem or seat leakage. The TM3 trunnion-mounted ball valves have been fire-safe tested and certified by ECM’s Register in compliance with API 607 standards.

MAIN FEATURES AND OPTIONS

• Body Construction: Available in two-piece or three-piece body with bolted joints.

• Materials: A wide range of materials, including carbon steel, low-alloy steels, stainless steels, Duplex 22/25 Cr, Ni-alloys, and titanium.

• Overlays: Alloy 625 / 316L.

• Coatings: Tungsten Carbide, Chromium Carbide, ENP.

• Seating Options: Soft or metal seated; single or double piston effect seats.

• Features: Double block and bleed; overlay on sealing surfaces only; fully internally clad.

• Special Applications: Designed for HIPPS, ESD, high/low temperature (cryogenic), erosive/abrasive, and corrosive services.
