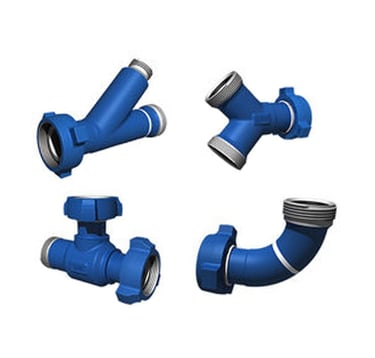

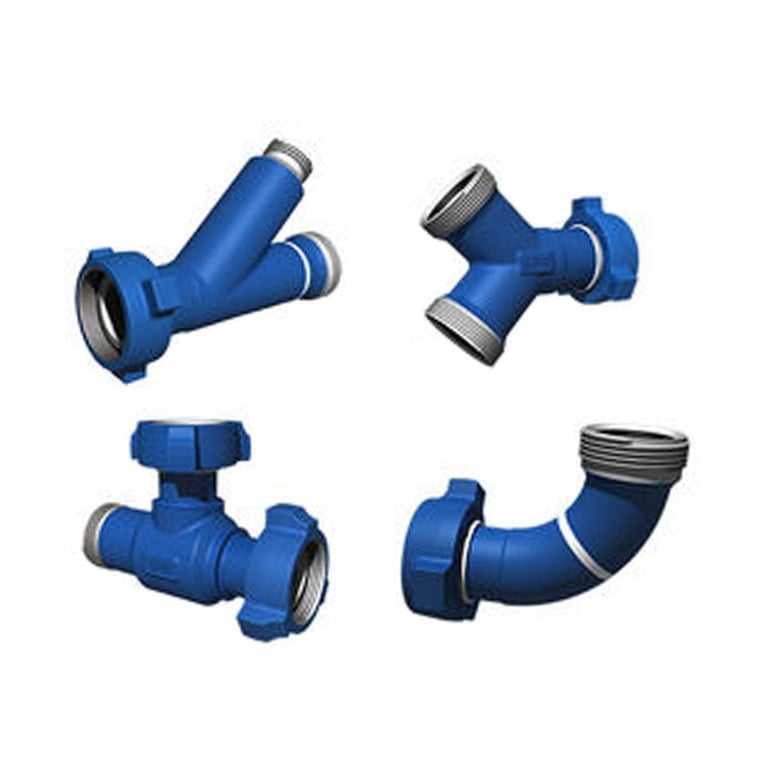

Cushion elbow
Linkbridge Oil offers a premium range of cushion elbows designed for high-pressure flow systems in oil and gas applications. As a trusted cushion elbow manufacturer in China, we produce forged, corrosion-resistant elbows that ensure smooth directional flow under demanding operating conditions.
Technical Highlights:
Size Range: 2" – 4"
Temperature Rating: –46°C to 121°C (L–U Class)
Material Class: AA – HH (NACE MR0175 compliant for sour gas service)
Performance Rating: PR1 – PR2
Standard Compliance: API 6A / API 16C
What Is a Cushion Elbow?
A cushion elbow is a specially designed flow iron fitting used to redirect high-pressure fluid streams at a 90° angle, while minimizing turbulence, erosion, and pressure loss. Its thickened inner wall and flow-optimized curvature offer enhanced wear resistance—ideal for frac lines, stimulation units, flowback systems, and cementing applications.
Key Benefits:
✅ Pressure Rating: Up to 15,000 PSI
✅ Reduced Erosion: Flow-smoothing design protects against internal damage
✅ Enhanced Safety: Integral forged structure reduces risk of leak points
✅ Quick Connection: Compatible with standard hammer unions (1502, 602, 1002)
✅ Field-Proven: Reliable in onshore and offshore harsh environments
